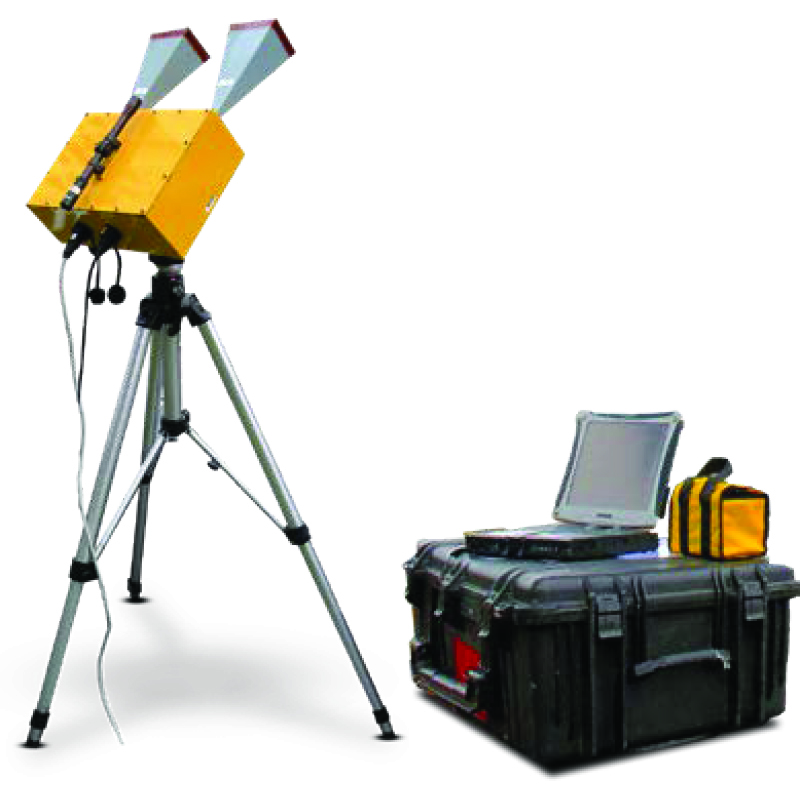

IBIS-FS

Remote monitoring for structural movements



A microwave interferometry based system for remote static and dynamic monitoring, IBIS-FS interferometric radar is used on bridges and other structures including buildings, historical monuments and towers.



In static, the IBIS-FS is ideal for:

  • Structure load testing;
  • Structure displacement and collapse hazards;
  • Cultural heritage preservation.



In dynamic, the IBIS-FS is best used for:

  • Structure resonance frequency measurements;
  • Structural modal shape analysis.



In either state, the IBIS-FS features:

  • Remote sensing: Real-time remote sensing at up to 1 km with no need for equipment to be installed on the monitored structure.
  • Accurate measurements: Measures displacements of as little as 0.01mm @ 0.5km range. No standard instrument can achieve such accuracy.
  • Ground vibration removal: Built-in accelerometer to cancel the self-induced vibrations transmitted to the radar from the ground (IBIS-FS Plus).
  • Sampling: Structural vibration sampling up to 200 Hz.
  • Always operational: Operates day and night and in all weather conditions.



Benefits of the IBIS-FS include:

  • Increased structural health monitoring efficiency through the use of a non-invasive vibration monitoring technique;
  • Accurate and remote monitoring of a bridge or structure;
  • Reduces the time necessary for static or dynamic bridge structural testing to just a few minutes;
  • Real-time data on structural vibration and natural frequencies;
