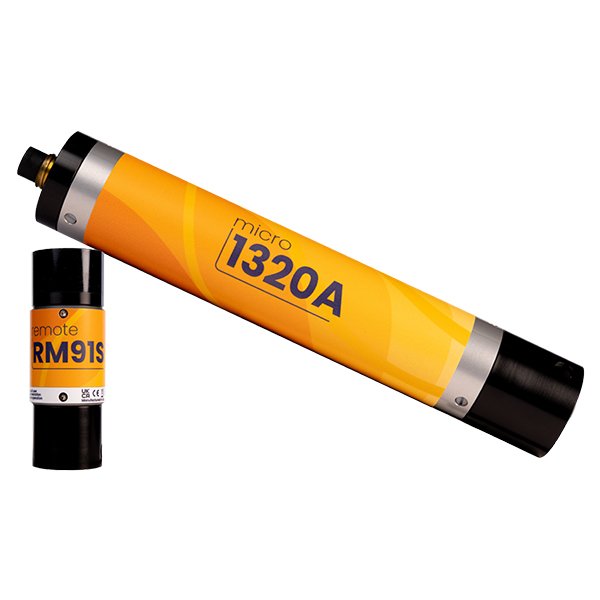

The 1320A Micro Beacon with a remote transducer head expands the versatility of the Micro Beacons. The transducer is placed away from the electronics housing and attached by an interconnect lead. This arrangement is ideal where space is limited or the transducer needs mounting away from noise sources such as ROV thrusters.
In addition to its internal batteries, the beacon has an external connector that allows it to operate and trickle charge from a ROV 24V supply. Channel selection and alternative bench charging is via a USB adaptor cable, included with the unit.
Key Features
- Sigma 2 technology for improved positioning with aae USBL Systems
- Channel configuration via Beacon Editor app
- Legacy support for older USBL systems
- Multi-Fire common interrogate functionality
- Automatic Pressure Release Valve (PRV)
- Remote transducer allows for fitting on small compact units
Applications
- General purpose tracking and positioning applications
- Diver tracking
- Static and dynamic operations e.g. ROV, sidescan sonar
