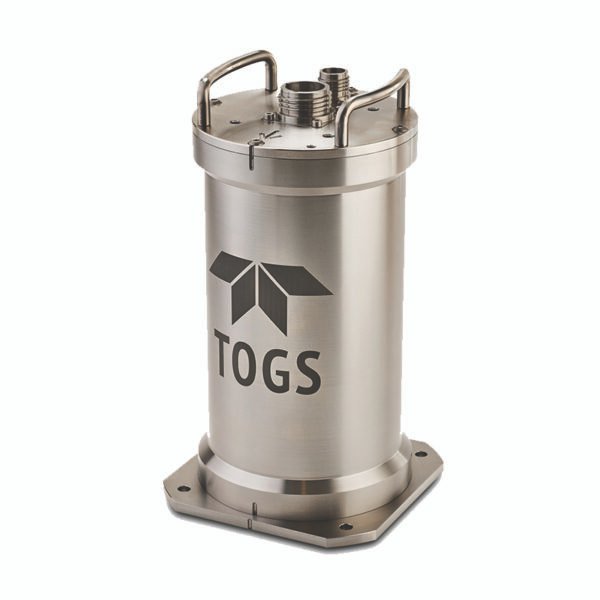

The new TOGSINS builds on core TSS fibre optic gyro technology by incorporating inertial navigation (INS) capability. As with TOGS, it is available in three standard heading accuracy variants: 0.1° (TOGSINS1), 0.3° (TOGSINS3) and 0.5° (TOGSINS5), all rated for operational depths to 4,000m or 6,000m giving you a range for all your needs.
Inertial position data is produced using an INS algorithm, within the firmware framework of TOGS, whilst attitude data is delivered via accurate roll/pitch measurement of 0.01° (TOGSINS1) and 0.05° (TOGSINS3 and TOGSINS5), and a heave performance of 5cm or 5%.
The TOGSINS operates at its ultimate performance when coupled directly to an external DVL and/or an external USBL. It can also be connected to an external depth sensor for enhanced performance.
TOGSINS has a fast alignment time, from switch-on to settle, of only 10 minutes giving less downtime and allowing for more operational time.
Built for OEM ROV manufacturers and operations, and with a number of options available, the highly flexible TOGSINS units are ideally suited to installation on a wide range of ROVs.
Key Features:
- Highly accurate Inertial Navigation System
- Three model options; 0.1°, 0.3° and 0.5°
- Choice of lightweight, high quality 4000m & 6000m titanium casings
- Additional external coupling; DVL/GPS/USBL/LBL
- Large range of outputs to suit most applications
Benefits:
- Based on tried and tested Teledyne TSS fibre optic gyro technology
- Fast alignment giving less down time and more operational time
- Low power consumption
- Able to accept boith external depth sensor & SVS to give better flexibility
- Easy to use common TSS browser interface
