SeaHub Surface Interface Unit

Applications

  • Connecting a laptop to survey sonars
  • Quick and versatile deployment



The SeaHub Surface Interface Unit is a versatile control unit, permitting the user to interface Tritech or third party survey equipment via a USB connection on their own PC or laptop. The SeaHub also features additional USB and serial ports; giving instant access to storage devices, GPS or other ancillary sensors.



Benefits

  • Compact rugged design
  • Use with any PC
  • Drive multiple sonars
  • Configurable ports
  • Low Power interface unit



Features

  • USB 2.0 interface
  • DC and AC input
  • ARCNET communication
  • RS232, RS422 or RS485 communications
  • Compatible with Gemini software
  • LED status indicators

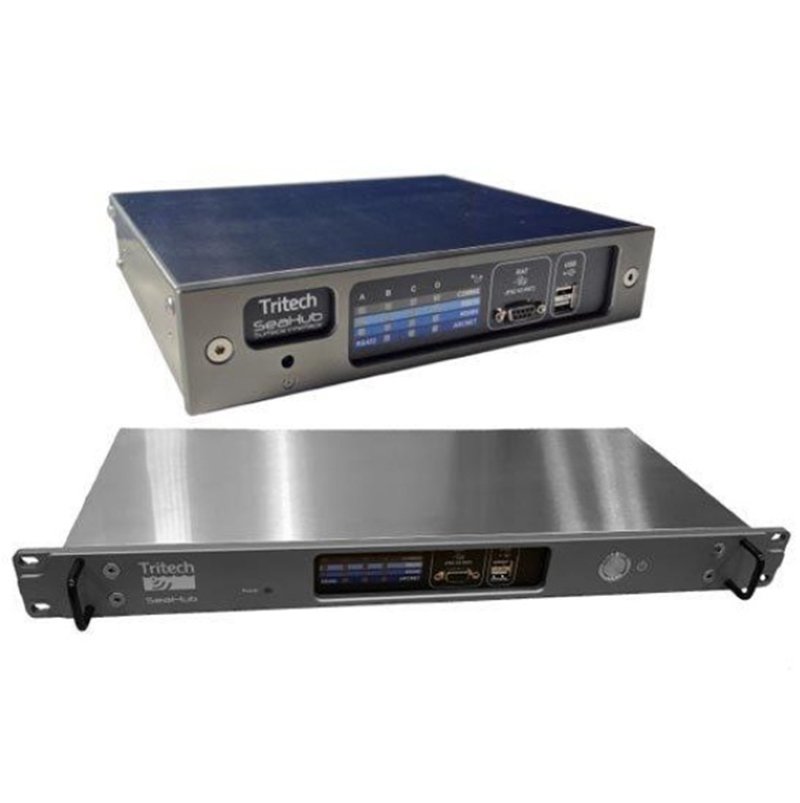

The SeaHub interfaces are software configurable to drive long lines with ARCNET or RS485 as required by the individual sensors and RS232, RS422 or TTL via multiplexer channels. The unit may be mains or DC powered; if mains powered then a DC output is available to power connected equipment. If DC powered the output DC is a fused extension of the input supply. Front panel diagnostic LEDs show interface ports in use and their status. The SeaHub is fully compatible with Tritech Seanet Pro software suite and is automatically recognised in Windows if Seanet Pro is installed. Additionally the unit may be extended using the same Remote Access Terminal (RAT) found on the Surface Control Unit (SCU) to provide an ergonomic set of hardware controls that can operate all of the functionality provided by the Seanet Pro software. Connection to the RAT is via the front mounted DE-9 port. Head connections can be made via an AIF compatible DA-15 connector, DE-9 serial, or DIN-6. The SeaHub is available as either a 19” rack mount able unit, or as a portable desktop package.
