Articulated Pull-in Heads

The Articulated Pull-in Head is fitted to the front of a subsea umbilical to allow it to be safely pulled into position during offshore installation. It provides a secure connection point for the pull-in wire, distributes loads into the umbilical’s strength members, and allows articulation that allows angular movement so pulling forces remain aligned and do not damage the cable. Its profile and reinforced design helps guide and protect the umbilical as it passes through structures such as J-tubes or I-tubes, reducing stress, preventing kinks, and ensuring a controlled installation.

OUR TRACK-RECORD
We have successfully delivered a range of diameters, lengths and load requirements associated to Pull-in Heads and have a wealth of knowledge across over a decade of supplying such equipment.

EXPERIENCE
Our management team have over 60-years’ experience in the oil, gas & renewables sectors and have personally been involved in FEED to delivery of products covering SURF/TURF projects.

CASE STUDY

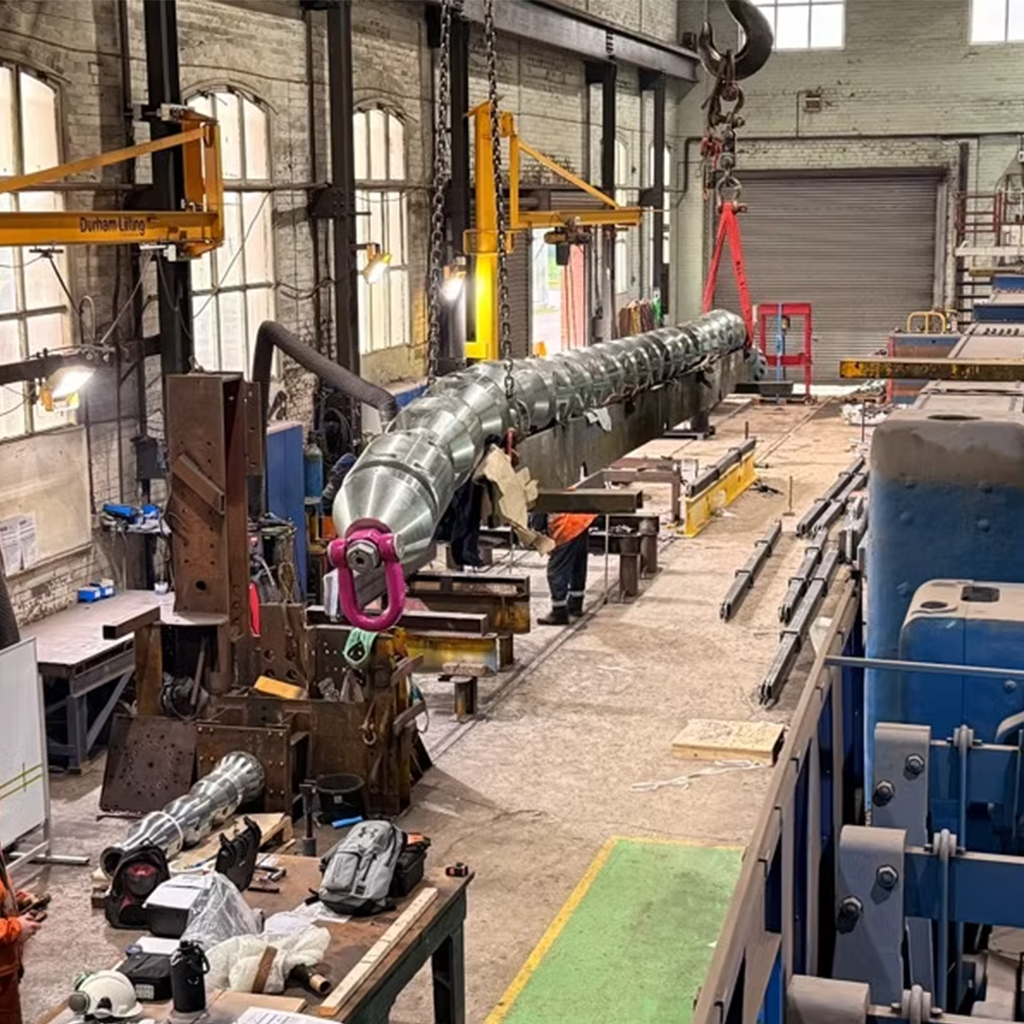

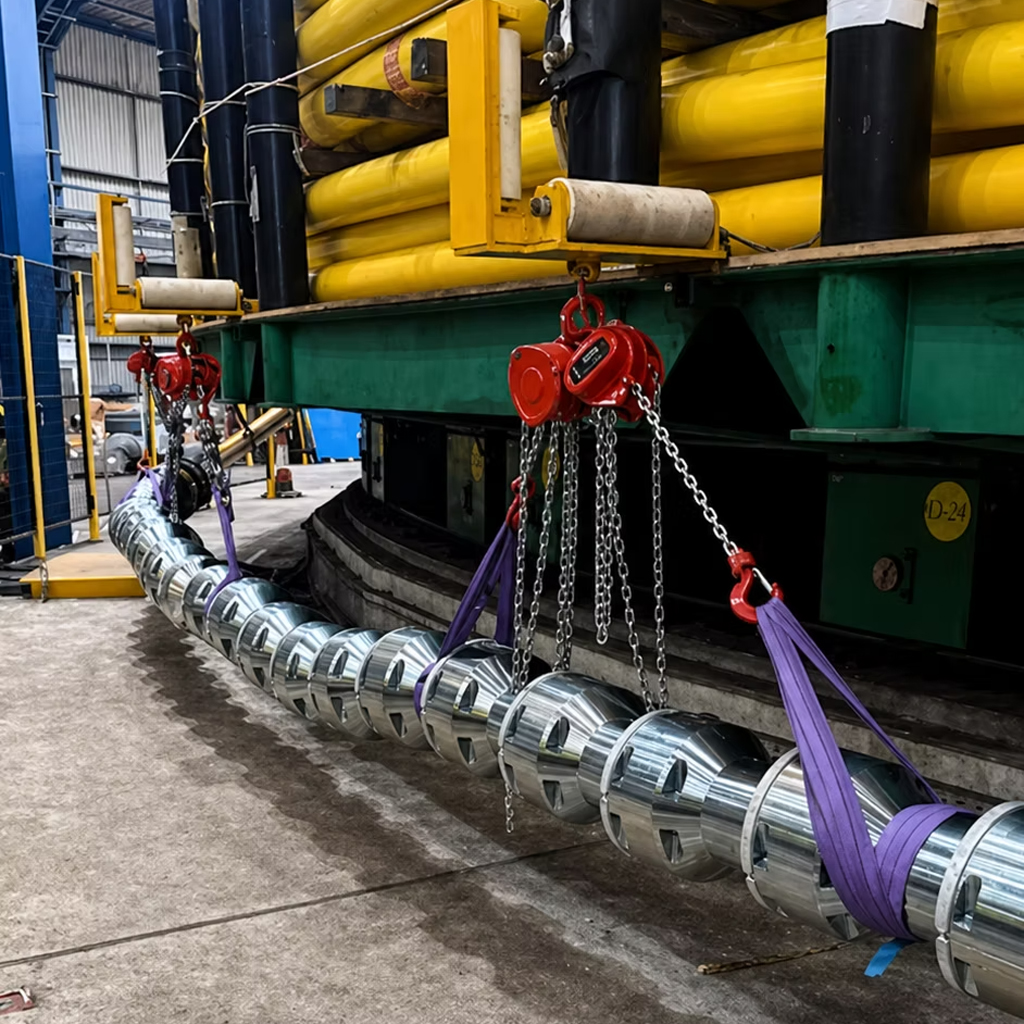

16m Articulated Pull-in Heads [PiH]

8-off 16m assemblies
PIH ID: 160mm to suit pigtail OD
PIH Locking Radius: 4400mm loaded
Axial pull-in load (WLL): 25t
Axial test load: 37.5t (WLL x 1.5 FOS)
Design bending moment: 50kNm
Test bending moment: 75kNm
Environmental: Max operating (water): 36°c
Max operating (air): 85°c
Design life: 40-years + 6-months wet storage
