Designed for non-contact water level measurement, the Nile 502 Series combines high accuracy with an out-of-the-box measurement range of up to 70 m. Its reliable interface and simple SDI-12 communication ensure seamless integration with current water monitoring stations.
Features:
- High accuracy
- NEMA 4x (IP65) enclosure is suitable for outdoor installations
- Frequency range 26 GHz
- Low current operation (<13.5 mA)
- Continuous operation, no warm-up or “lock on”
- Mounting enclosures, radio communication links and other accessories are available
- Optional keypad display
- Surge protection
- Multi-Echo Tracking
Nile Radar Series Options:
Nile 502 includes: Pulse Radar Water Level Sensor 0-20M, SDI-12 Radar with sealed antenna.
Nile 502-M12 includes: Pulse Radar Water Level Sensor 0-20M, SDI-12 Radar with sealed antenna. With M12 Connector. Requires M12 Cable.

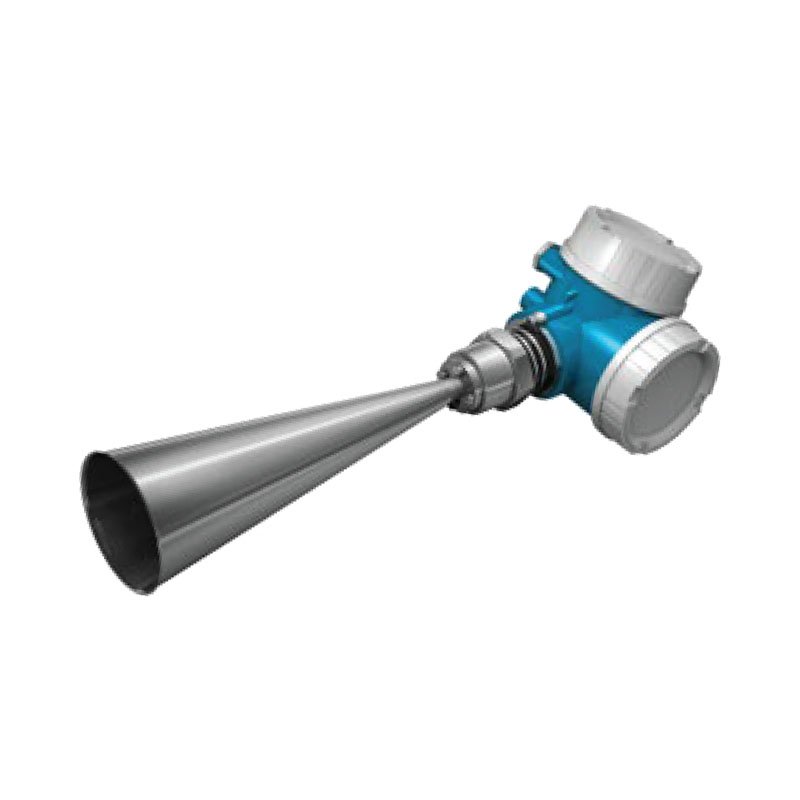

The Nile 502, 504, and 517 make up the Nile series of radar water level sensors. The rugged, innovative design was built for extreme environmental conditions – making this series ideal for tough-to-reach sites. Its reliable interface and simple SDI-12 and RS-232 communication ensure seamless integration with current water monitoring stations.
