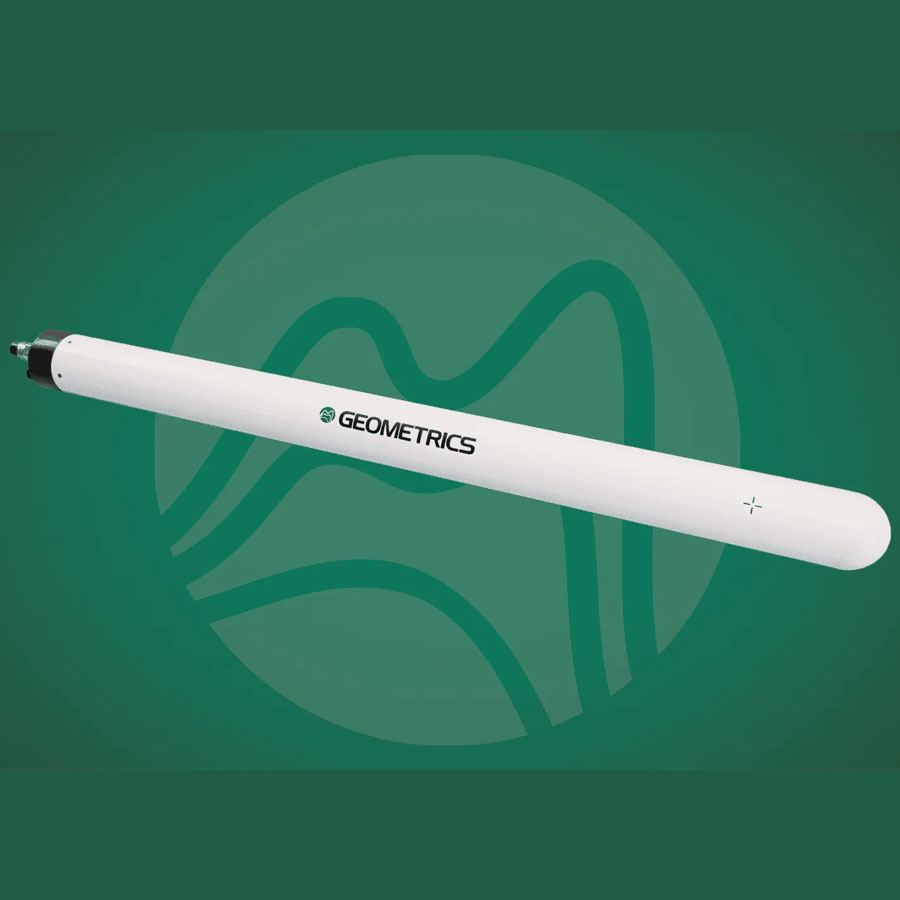

The MagElement is the latest addition to the long list of products trusted by professionals worldwide. Now compatible with autonomous platforms, this new magnetometer utilizes the lightweight, low-power MFAM sensor already proven in the Geometrics MagArrow. It combines the features our customers use the most, as well as new capabilities to more easily interface and integrate with autonomous platforms. The MagElement is ideal for any marine magnetic survey, including the UXO investigations, that have proven why our marine magnetometers are so respected in the industry.
Since 1969, Geometrics has been designing magnetometers to meet a wide range of industry needs. This very high-resolution Cesium vapor marine magnetometer is low in cost, small in size, and offers flexibility for professional surveys in shallow or deep water.
Features & Benefits

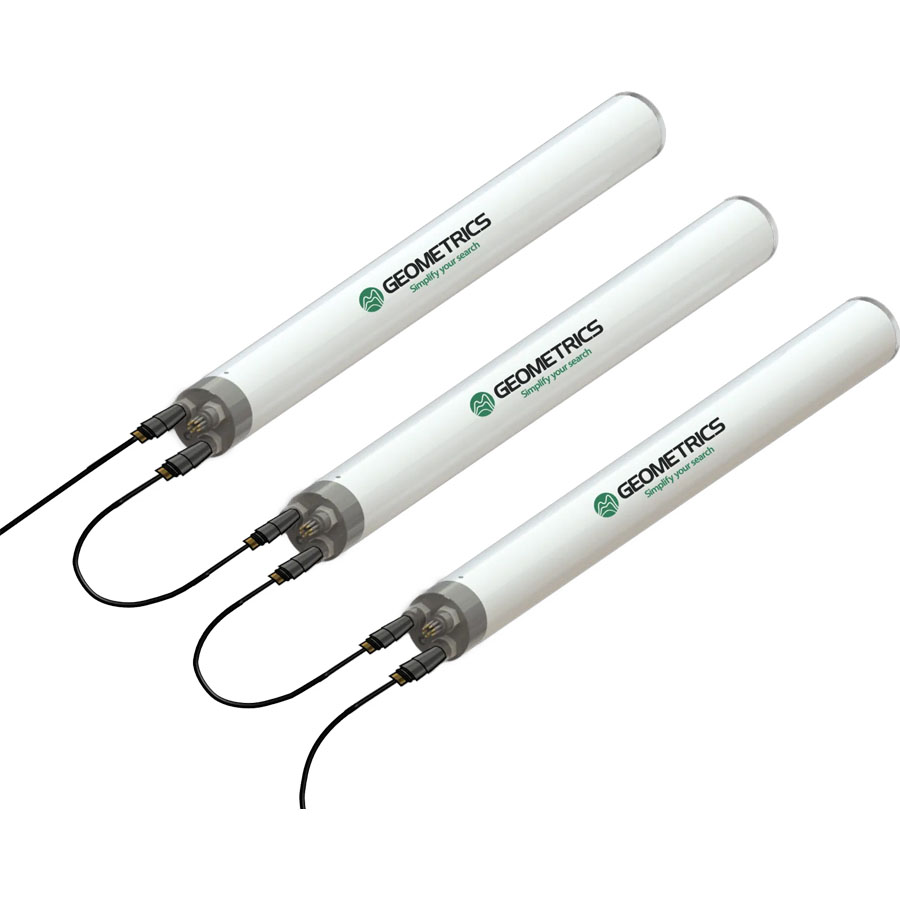

- Scalable – Tow an array of up to 16 MagElements with a single tow cable.
- Sample at up to 1000Hz – Unparalleled data density while optimizing survey efficiency. .

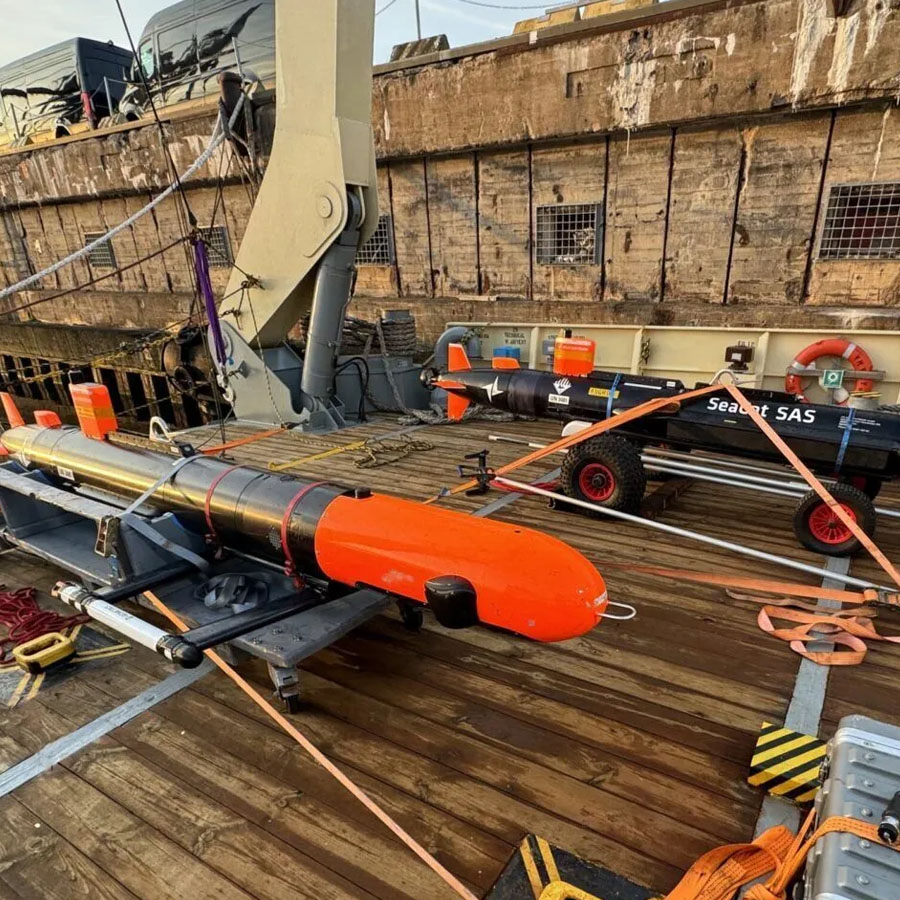

- Designed For AUV/ASVs – Low-power, small size and standardized data connections allow the MagElement to be deployed on almost any platform
- Cesium Sensor Sensitivity – High sensitivity and low-noise allow you to detect objects at a greater distance – improving your survey productivity
- Global Version Available – Use anywhere in the world without need for an export license (except embargoed countries). See specifications.
- Flexible Interfaces – Standard Ethernet communications, ability to add external sensors, and a wide input power range allow integration with a broad range of platforms
MagElement Marine Magnetometer Specification List
MAGNETOMETER / ELECTRONICS
- Operating Principle: Laser pumped cesium vapor (Cs133 non-radioactive) total field scalar magnetometer
- Operating Range: 20,000 to 100,000 nT.
- Operating Zones: Configurable for operation anywhere in the world
- Noise: 2pT/VHzrms; Global Version 20pT/VHzrms
- Gradient Tolerance: 20,000 nT/m
- Sample Rate: Configurable up to 1000 Hz
- Heading Effect: Typical ± 0.5nT*
- Connectors: SubConn 8-pin
- Data Output: Ethernet
- Voltage Input: 12 – 48 VDC
- Power: 7W
*Along individual survey lines
MECHANICAL
- Diameter: 2.375 inches (6 cm)

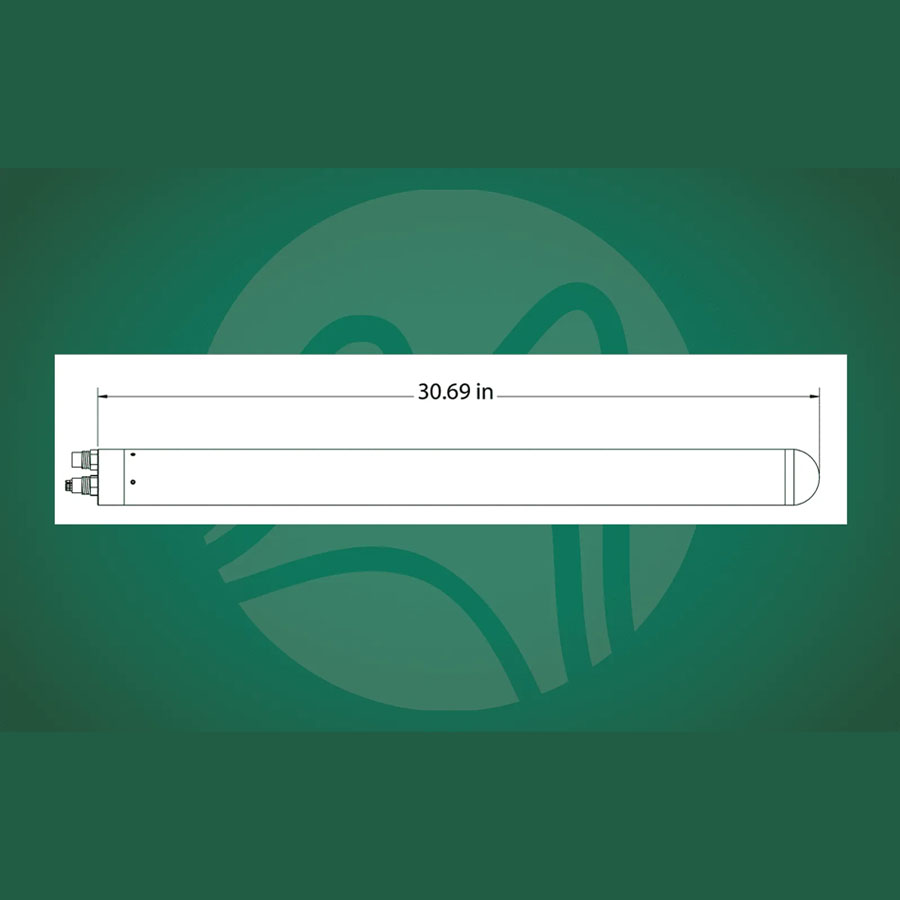

- Length: ~31 inches (78 cm)
- Weight: 4.25 pounds (1.9 kg)
ENVIRONMENTAL
- Operating Temperature: -20℃ to +50°C (-4°F to +122°F)
- Storage Temperature: -45°C to +70°C (-48°F to +158°F)
- Depth Rating: 750m (2460ft); 1,100 psi
ACCESSORIES
- Standard: 3-meter Jumper Cable, Topside Adapter Cable, Product Manual, Pelican Storage Container

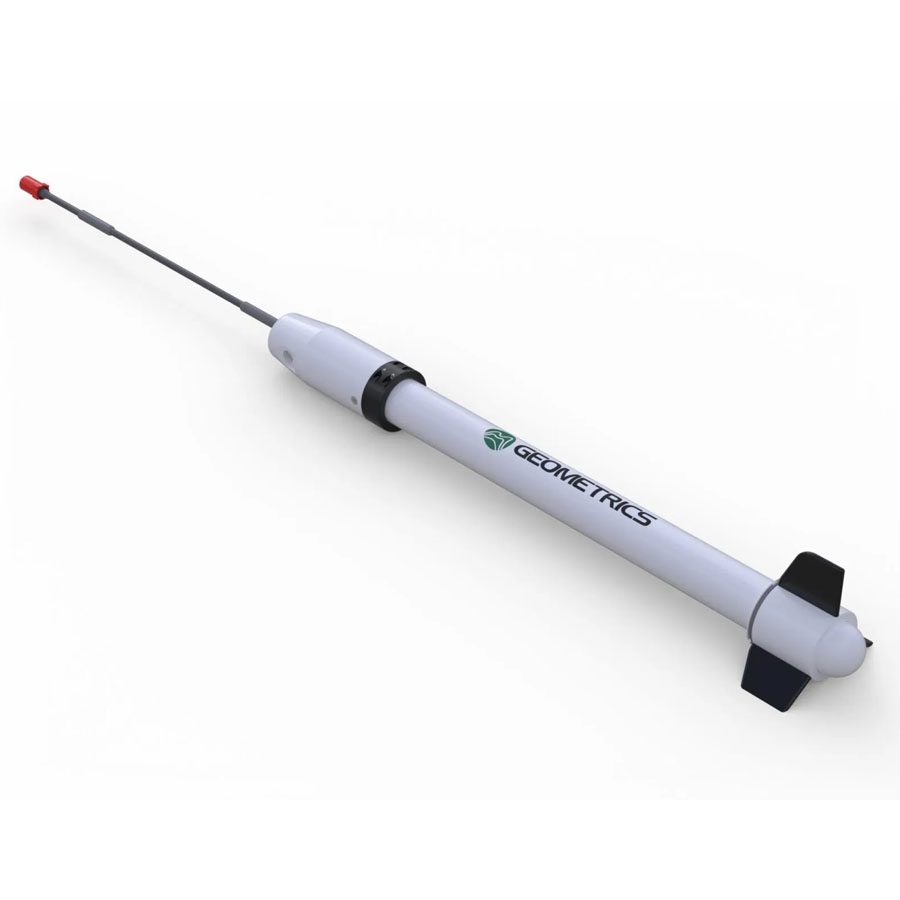

- Optional: Tow Package including Nose Cone, Fins, Tow Cable
Typical Detection Range for Common Objects
- Ship: 1000 tons 0.5 to 1 nT at 800 ft (244 m)
- Anchor: 20 tons 0.8 to 1.25 nT at 400 ft (120 m)
- Automobile: 1 to 2 nT at 100 ft (30 m)
- Light Aircraft: 0.5 to 2 nT at 40 ft (12 m)
- Pipeline (12 inch): 1 to 2 nT at 200 ft (60 m)
- Pipeline (6 inch): 1 to 2 nT at 100 ft (30 m)
- Iron: 100 kg 1 to 2 nT at 50 ft (15 m)
- Iron: 100 lb 0.5 to 1 nT at 30 ft (9 m)
- Iron: 10 lb 0.5 to 1 nT at 20 ft (6 m)
- Iron: 1 lb 0.5 to 1 nT at 10 ft (3 m)
- Screwdriver: 5-inch 0.5 to 2 nT at 12 ft (4 m)
- Bomb: 1000 lb 1 to 5 nT at 100 ft (30 m)
- Bomb: 500 lb 0.5 to 5 nT at 50 ft (16 m)
- Grenade: 0.5 to 2 nT at 10 ft (3 m)
- Shell: 20 mm 0.5 to 2 nT at 5 ft (1.8 m)
MagElement Marine Magnetometer Shipping Weights & DIMS
SHIPPING WEIGHTS & DIMS
Contents
- Case 1 – MagElement Marine Magnetometer
Dimensions (L x W x H)
- 57in x 20in x 7in
- 145cm x 51cm x 18cm
Weight
TYPICAL USES

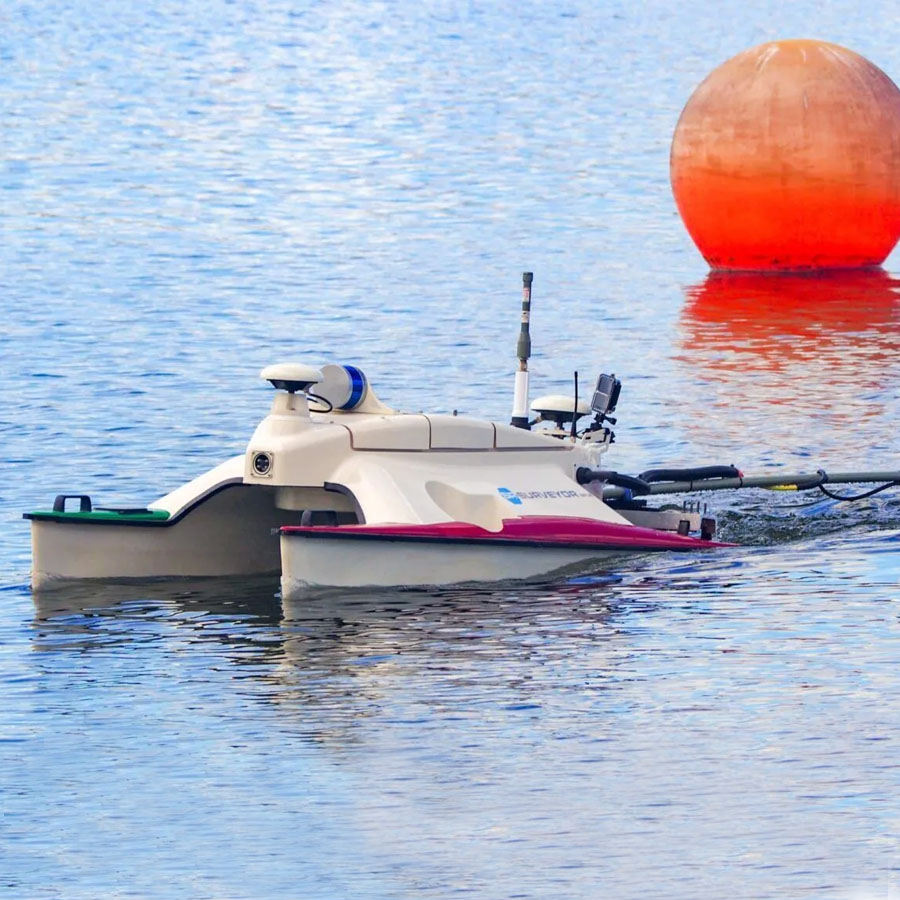

Typical deployment options include large frame arrays; small unmanned/autonomous vessels and Scanfish systems.
Detection and Mapping of ferrous objects: Ferrous objects of all sizes, such as anchors, chains, cables, pipelines, ballast stones and other scattered shipwreck debris, munitions of all sizes (UXO), aircraft, engines and any other object with a magnetic expression.
Geologic Studies: Characterize the magnetic signature of the Earth over vast distances for geologic studies
