Next-generation ground-based radar for semi-permanent long-range slope monitoring

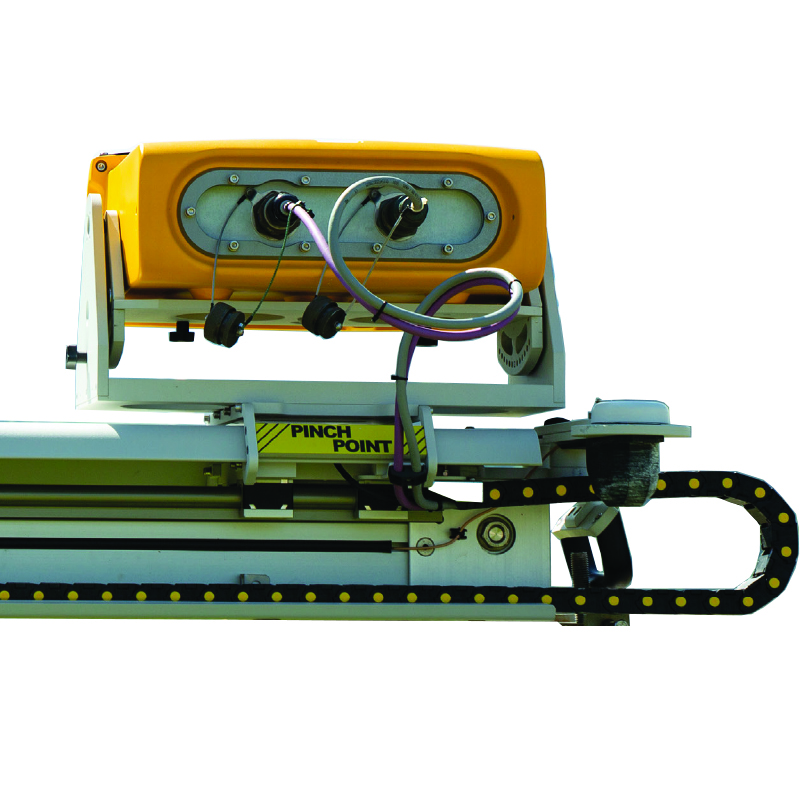

IBIS-FM EVO slope monitoring radar has been designed to measure sub-millimeter displacements with the highest data quality and proven system reliability. For broad ranges of monitoring of known and unknown slope instabilities, the IBIS-FM EVO offers the perfect solution for semi-permanent safety-critical radar monitoring.
Same as the rest of the MineMonitoring radar fleet, IBIS-FM EVO uses the Guardian slope monitoring software for processing, interpretation, and management of slope stability risks. It can be seamlessly integrated with Guardian FPM360 in order to have a single user interface for all IDS radars and benefit from IDS GeoRadar’s state-of-the-art atmospheric correction.
IBIS-FM EVO, besides the Standard version, is available in Short and Long versions for a wider range of applications and tailored benefits. IBIS-FM EVO Short with its compact design and increased transportability is ideal for short/medium range monitoring. IBIS-FM EVO Long with a 3.2m scan length, offers an improved spatial resolution and is ideal for long-range monitoring.
Guardian software
Powerful and user-friendly, the Guardian software manages slope stability risks in both geo-hazard assessment and open pit mining operations. Guardian enables fast interpretation and therefore fast reaction time to vital real-time information delivered by the IBIS-FM EVO radar system.
Reliable data with flexible alerts in real-time
Highly accurate displacement data is provided to monitoring specialists in real-time using the most advanced Automatic Atmospheric Correction algorithm.
Guardian offers alert messaging options and comprehensive geotechnical analysis tools. Monitoring specialists are immediately alerted in the event of slope displacement by means of various instant messaging options such as email, SMS or pop-up alerts.
Advanced data integration for even clearer understanding of slope stability
Automatically import different total station and GNSS datasets, for example from Leica GeoMoS©, to enable even clearer understanding of slope stability. Monitoring experts can com-pare prism and GNSS displacement trends, by mean of time series or Stereonet charts, with IBIS radar data to understand movement behavior that much faster.
Full Pit Monitoring 360 & True Vector
Guardian offers Full Pit Monitoring (FPM) capabilities, stitching together data sets from multiple IBIS radar systems onto a single radar map. The True Vector technology automatically resolve the spatial direction of displacement for hundreds of thousands of overlapping radar pixels monitored simultaneously by two or more radars.
