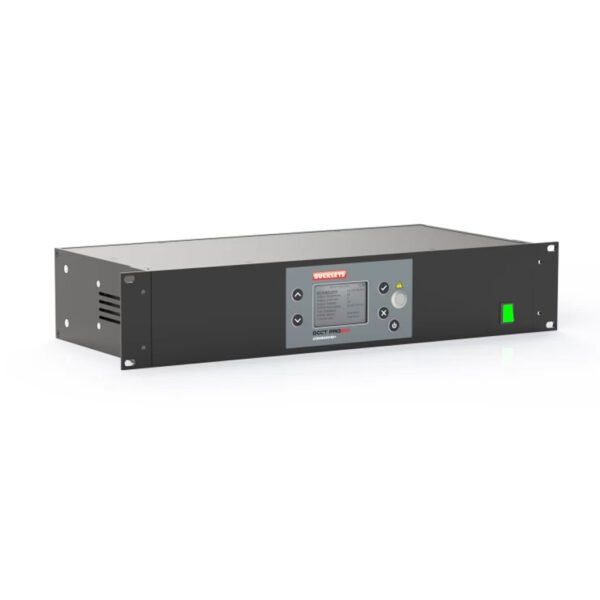

DCCT Pro2 mains powered testers are ideal for the rapid and effective testing of porosity in non-conductive coatings. Incorporating a resettable high-speed counter, they are specifically designed for use within automated production processes.
Used extensively in the manufacturing industry for checking cables, plastic sheets, battery cases, moulded components, and nonconductive coatings on steel pipes, DCCT Pro2 units can be programmed to the output voltage, sensitivity, and timing parameters of your choice. The Unit comprises a user interface, with front panel High Voltage on/off button, interlock input, twin no-volt change-over relay outputs, and one HV output module. The instrument is built into a 19” rack mountable case. Buckleys design and supply custom electrodes to suit your application – please contact us with your requirements.
Features
- Robust metal case with accessory kit to allow mounting in standard 19” rack if required
- Digital control allows easy setting of output voltage, sensitivity, and timing parameters
- Clear legible display indicates output voltage and current
- Multicolour backlight displays HV live and alarm status
- Resettable high-speed counter
- Visual and audible alarms
- Suitable for in-process testing at a wide range of speeds
- Can be integrated into automated testing for discrete items
- Conforms with BS EN 62230 (formerly BS 5099)
- Calibration Certificate Included
- UKCA & CE Approved
